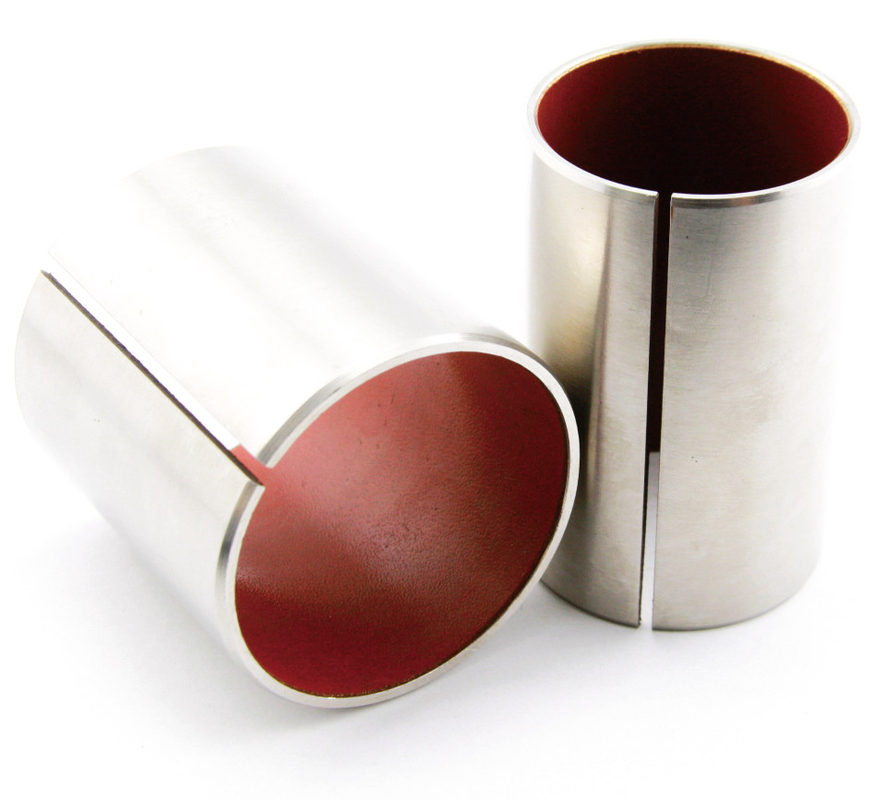

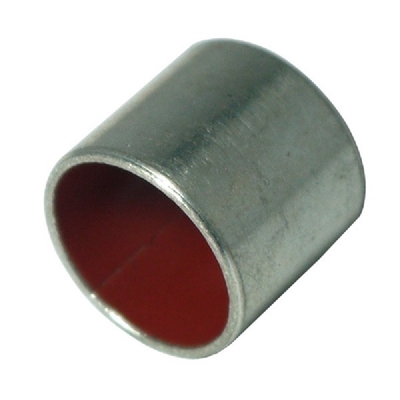

反摩耗の低い摩擦係数の青銅色の袖のブッシュ

起源の場所 中国製
ブランド名 VIIPLUS
証明 ISO 9001
モデル番号 ブッシュのバイク
最小注文数量 交渉可能
価格 Negotiable
パッケージの詳細 輸出カートンの木製パレット木の箱
受渡し時間 7-25の仕事日
支払条件 T/T、ウェスタン・ユニオン
供給の能力 7000000の部分/部分1週

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
材料 PTFEのブッシュ サイズ 標準サイズ、利用できるインチのサイズ
タイプ ブランド名 oem
薮で囲む工場価格の忍耐 tiffany@viiplus.com 自動注油式の忍耐の薮で囲む製造業者 https://www.viiplus.com/
高いライト 自動注油式の焼結させた青銅色のブッシュ 特徴 グリースリザーバー付きブロンズブッシング (BRO-MET、FB090、BRM10、WB800)
ブッシュ軸受け製造業者の製造者の輸出業者 明白な軸受け。長く、手入れ不要サービスは、さまざまな設計のそして異なった材料からのブッシュを製造する。 tiffany@viiplus.comのブッシュ-形成し、購入しなさい- https://w
ハイライト

低い摩擦係数の青銅色の袖のブッシュ

,

反摩耗の青銅色の袖のブッシュ

,

電気スクーターの真鍮の袖のブッシュ

メッセージ
製品の説明

Self-balancing Scooter Bushing, Bike bushing, Bearings and bushings used in the frame of a scooter, including the steering stem and engine mounts.



Bronze Ptfe Steel Backed bushings are used in the rear-wheel suspension of this electric scooter.
Best value Bushing Scooter – Great deals on Bushing Scooter ...

Bike Bushing

Wholesale Electric Motor Bushing Bearing Steel Bushing

Buy cheap bushing for scooter — low prices, shipping online, Cheap bushing for scooter – a catalog of goods at low prices and with fast delivery. And a wide range of quality bushing products from china.



Electric Scooter Bushing Parts

Control Arm Rear Bushing

Scooter Bushing

Electric Scooters Sleeve Bushings

BUSHING BEARINGS






Material Structure



PVB012 Stainless Steel Self Lubricating Bearing.png













1. PTFE with Pb 0.01~0.03mm

2. Porous bronze 0.2~0.3mm

3. Stainless steel backing 0.7~2.3mm



Technical Data

Specific load capacity (static) ≤ 250 [ N/mm² ]
Specific load capacity (dynamic) ≤ 140 N/mm² at low speeds
Specific load capacity(rotating oscillating) ≤60N/m㎡
Friction value 0.08 to 0.2 µ(dry)0.02 to 0.08µ(hydrodynamic)
Temperature -200 to +280 [ °C ]
Max. dry running Pv (Short-term operation) 3.6N/m㎡﹡m/s
Max. dry running Pv (Continuous operation) 1.8N/m㎡﹡m/s
Max. speed (dry running) 2m/s
Max. speed (Hydrodynamic operation) >2m/s





 coated bushings



Characteristics

Low friction coefficient, good anti-wear, good anti-corrosion

Performs well in mid-acid and strong alkaline condition

ptfe bushing

Availability

Standard cylindrical bushings, flanged bushings, thrust washers and strips are availabe

Special designs are produced at short notice

Lead free type is also available

Material

Stainless Steel Base+Bronze Powder +PTFE

Typical Application

the corrosion resistant part in dyeing machinery and ocean industry, etc.

Max Static Load

250N/mm²

Max Dynamic Load

140N/mm²

Max Oscoillation Load

60N/mm²

Max Line Speed

Dry 2.5m/s, Oil > 5m/s

PV Value Limit

Dry 1.8N/mm².m/s,Oil 3.6N/mm².m/s

Friction Coefficient

Dry 0.08~0.20, Oil 0.02~0.12

Mating Axis

Hardness >220, Roughness 0.4~1.25

Working Temperature

-200~+280℃

Thermal Conductivity

40W/mk

Coefficient Of Linear Expansion

11×10-6/K



Our Services

1,We are produce high quality and low price good wear resistance sliding bush supplier

2,Our sliding bush passed the ISO TS 16949 .

3,Under the guidance of Pursuit of the excellence & keep improving.

4,We will do our best to provide the quality products and professional sevices.
